Solara

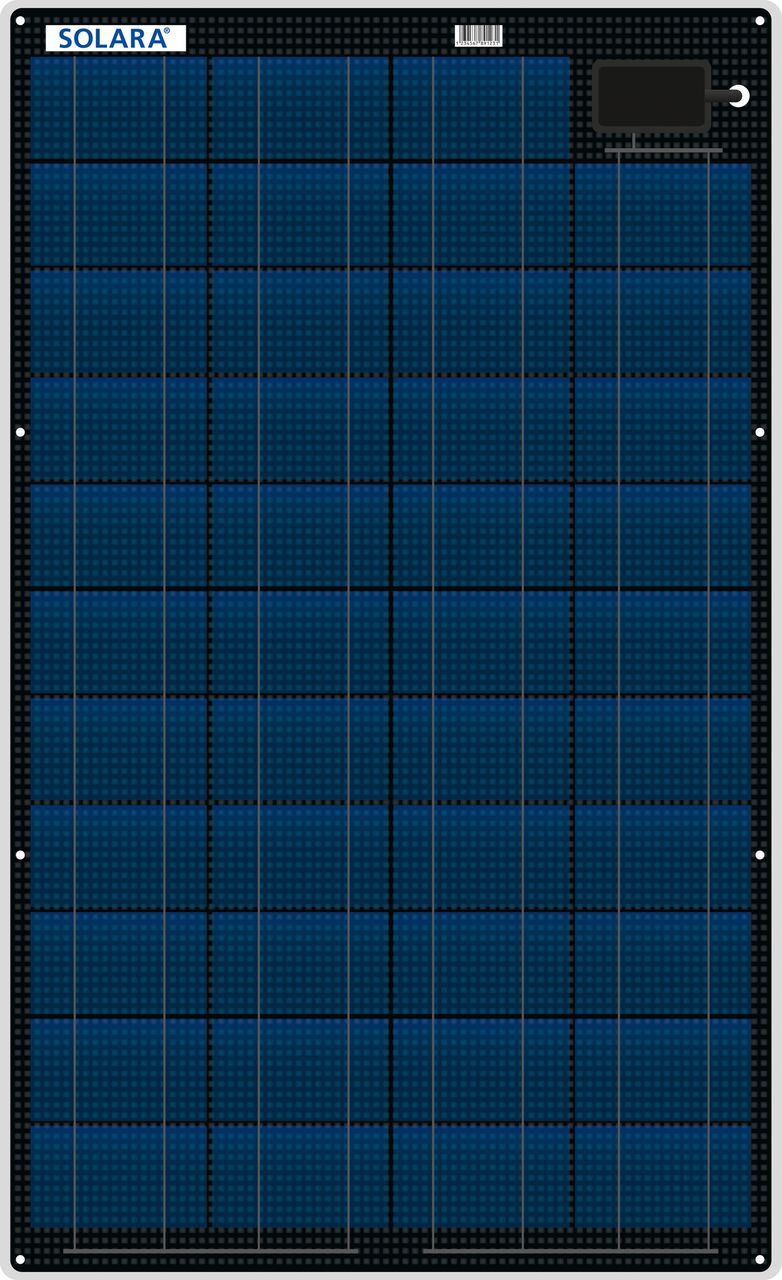

S110P42 (12V/27Wp/110Wh/d)

S110P42 (12V/27Wp/110Wh/d)

Type S110P42
Daily output in summer in Germany (Wh/d) 110
Rated output (Pmpp) Wp 27
Short-circuit current (Isc) A 1,29
Open-circuit voltage (Uoc) V 26,50
Voltage (Umpp) 22,34
Current (Impp) A 1,22



Appearance and design.

  • Stability and maximum heat dissipation due to aluminum-sandwich-plate.
  • Thanks to innovative cell-chaining technique semi-flexible (up 3%) mountable.
  • Walkable.
  • Extremely resistant protective Nowoflon film on front and back.
  • Particularly flat and glued screwed cable outlet with strain relief.
  • Well known since 20 years.
  • Already prepared cable gland in the carrier plate.
  • 5 kg.

Long lifetime even under extreme conditions.

  • Extremely high yields through the use of crystalline high performance cells.
  • Maximum daily yield by additional single cells.
  • Powerful low-light performance – High yields even under cloudy and partially shaded conditions.
  • External cell protector with bypass diodes offers protection against cell overheating (Hot-Spots) is included.
