Teltonika Networks

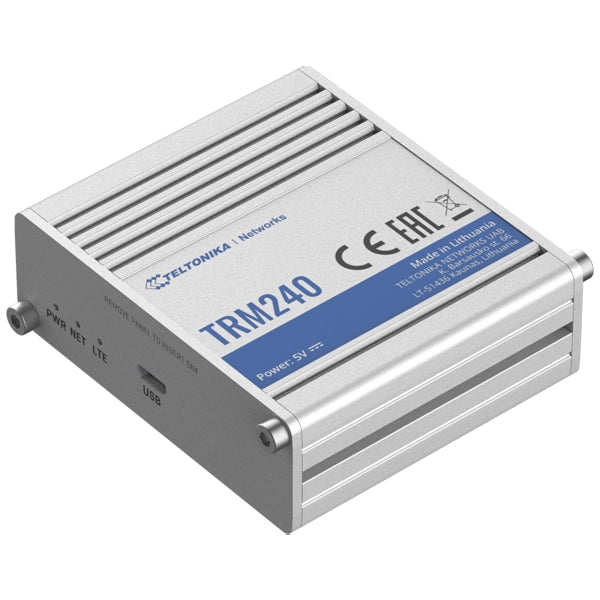

TRM240
TRM240
Industrial grade cellular LTE Cat 1 modem with rugged aluminum housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments.
It is backward compatible with 3G and 2G, therefore it is an optimal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructures. It offers a long and stable lifecycle and low power consumption important for IIoT projects.
TRM240 comes with a USB interface for power and communication.
| HARDWARE | |
| Mobile | LTE (Cat1) / 3G / 2G |
| SIM slot | Mini SIM (2FF) |
| Antenna connector | 1 x SMA for LTE |
| Operating Voltage | 5V - powered via microUSB |
| Power consumption | 3.2 W Max |
| Configuration interface | microUSB |
| LED indicators | Power, Network and LTE status LEDs |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Casing material | Aluminium housing |
| Ingress Protection Rating | IP30 |
| Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm |
| Weight | 131 g |
| SOFTWARE | |
| Management software | Windows Connection Manager (NDIS driver) |
| USB Serial Driver | Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x |
| RIL Driver | Android 4.x/5.x/6.x/7.x/8.x |
| NDIS Driver | Windows 7/8/8.1/10 |
| Gobinet Driver | Linux 2.6/3.x/4.1~4.14 |
| Linux qmi wwan Driver | 3.x (3.4 and later)/4.1~4.14 |
| Protocols | TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
| INTERFACES | |
| Management interface | AT Commands (3GPP TS27.007, 3GPP TS27.005) Hayes AT Command set Enhanced AT Commands |
